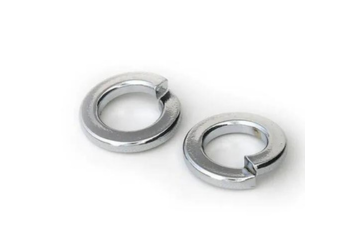

Spring washers, available in both square and flat configurations, are critical components in the field of fastening technology. These washers are designed to provide essential functions such as load distribution, shock absorption, and maintaining tension in bolted joints. The square and flat variants of spring washers serve distinct purposes, contributing to the stability and reliability of fastened connections.

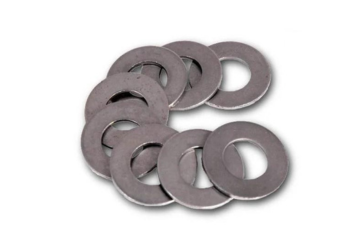

Plain washers, also known as flat washers, are fundamental components in fastening systems that serve a crucial role in ensuring uniform load distribution and preventing surface damage. These simple yet indispensable components find application in various industries, contributing to the stability, longevity, and reliability of bolted connections.One of the primary functions of plain washers is to distribute the load of a fastener evenly across the surface of the connected material. By providing a flat, smooth interface between the nut or bolt head and the material, plain washers help prevent localized pressure points. This even distribution of load is essential for preventing deformation, damage, or fatigue in the connected components.

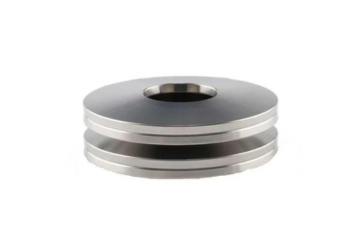

Belleville washers, also known as conical spring washers or disc springs, are specialized spring washers designed to provide controlled spring force and axial deflection in bolted connections. Their unique conical shape imparts distinctive mechanical properties, making them valuable components in applications requiring precise load and deflection characteristics.
Belleville washers derive their effectiveness from their conical shape, which enables them to generate a high spring force within a compact space. When compressed, the conical geometry allows the washer to store and release energy efficiently, providing controlled and predictable spring force in response to axial loads.
Disc washers, also known as flat or round washers, are essential components in fastening systems, contributing to the stability, alignment, and reliability of bolted connections. These simple yet crucial washers play a vital role in various industries by providing a flat, smooth surface for load distribution and preventing surface damage in bolted assemblies.
Disc washers contribute to proper alignment and spacing in bolted connections, ensuring that the fastened components are securely positioned. They help maintain the correct distance between the fastener and the material, preventing unnecessary compression or tension. This alignment is essential for the stability and longevity of the fastened joint.

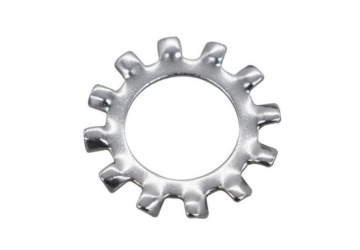

An external tooth lock washer is a specialized type of lock washer designed to provide enhanced grip and security in fastener applications. Characterized by serrations on the outer diameter, this washer is strategically employed to prevent loosening of bolts and nuts subjected to vibrations, ensuring a more secure and reliable connection.
The key feature of an external tooth lock washer lies in its serrated or toothed outer edge. These external teeth bite into the mating surface of the connected material and the underside of the nut or bolt head. This design creates friction and resists rotation, effectively preventing the fastener from loosening due to vibrations, thermal expansion, or other dynamic forces.

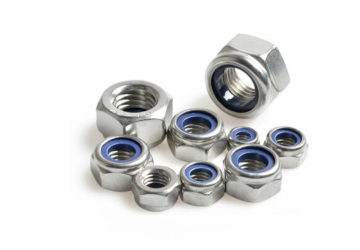

Nylock nuts, also known as nylon insert lock nuts, are a specialized type of nut designed to provide a secure and self-locking mechanism in bolted connections. These nuts feature a nylon insert at their top end, which acts as a locking element to prevent unintentional loosening of the nut over time. Nylock nuts are widely used in various industries where reliable and vibration-resistant fastening is essential.
The distinctive feature of Nylock nuts is the nylon insert located at the top of the nut. This insert is a thin, circular ring with a slightly smaller inner diameter than the thread of the nut. When the Nylock nut is threaded onto a bolt or screw, the nylon insert creates a resistance that adds a locking function to the nut. As the nylon engages with the threads of the mating bolt, it provides a self-locking effect, preventing the nut from backing off due to vibrations or external forces.

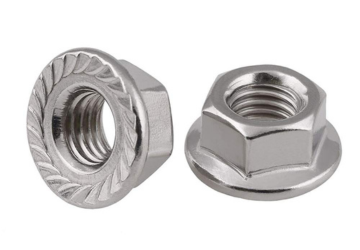

Flange nuts are specialized nuts with a built-in flange, or a flat, disc-like extension integrated into the nut design. This flange serves multiple purposes, including providing a larger surface area for improved load distribution, acting as a washer, and enhancing the stability of the bolted connection. Flange nuts are widely used in various industries where reliable and secure fastening is essential.
The key feature of flange nuts is the extended flange, which provides a larger contact surface. This expanded surface area contributes to more effective load distribution, spreading the forces applied during tightening across a broader section. The enhanced stability helps prevent the nut from embedding into softer materials and reduces the risk of surface damage.

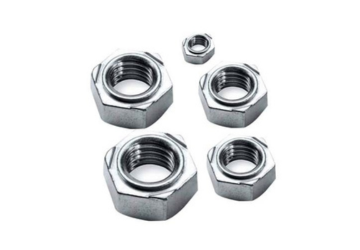

Weld nuts are specialized nuts designed for permanent attachment to a workpiece through welding. These nuts have a flange or projection that provides a surface for welding onto the material, creating a strong and durable connection. Weld nuts are commonly used in applications where a threaded fastener needs to be permanently joined to a metal component.
The primary feature of weld nuts is their suitability for welding directly onto the surface of a workpiece. The flange or projection on the nut provides a designated area for welding, allowing for a secure and permanent attachment. This welding process eliminates the need for additional fasteners or threaded holes, streamlining the assembly and contributing to the overall efficiency of the manufacturing process.
Wing nuts are a type of nut characterized by two large, flat wings extending from the nut's body. These wings provide a convenient grip for hand-tightening, allowing for quick and tool-free fastening and adjustments. Wing nuts are widely used in applications where frequent assembly and disassembly are necessary, and the convenience of manual tightening is advantageous.
The distinctive feature of wing nuts is the pair of wings or projections extending from opposite sides of the nut's body. These wings are designed to be easily gripped by hand, eliminating the need for tools during the tightening and loosening processes. This manual operation allows for quick adjustments in various applications without requiring additional equipment.

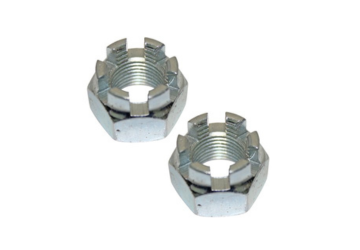

A castle nut, also known as a slotted nut or castellated nut, is a specialized type of nut featuring slots or notches along its perimeter, resembling the battlements of a castle. This distinctive design serves a dual purpose, providing secure fastening while allowing for the insertion of a cotter pin or safety wire. Castle nuts are commonly used in applications where safety and reliability are paramount.The defining feature of a castle nut is the series of slots or notches cut into one end of the nut. After the nut is threaded onto a bolt or threaded rod, a cotter pin or safety wire is inserted through the slots and through a hole in the bolt or stud. This additional hardware prevents the castle nut from unintentionally loosening due to vibrations, ensuring a secure and reliable fastening.

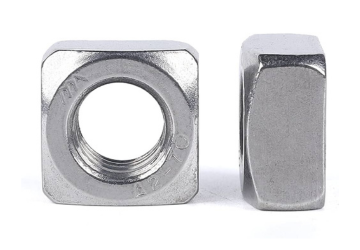

A square nut is a specialized type of nut characterized by its square-shaped profile. Unlike traditional hexagonal nuts, square nuts feature four flat sides, creating a shape that facilitates secure fastening and prevents the nut from rotating during tightening. Square nuts are commonly used in various applications where stability, ease of assembly, and resistance to loosening are essential.
The square shape of the nut provides an advantage in preventing rotation during fastening. When threaded onto a bolt or threaded rod, the square nut engages with the flat sides, reducing the likelihood of unintentional spinning. This characteristic makes square nuts particularly useful in applications where stability is crucial, and the prevention of nut rotation is desired.

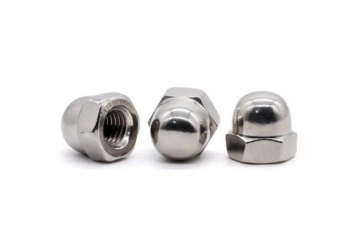

Doom Nut nuts are commonly used in woodworking and furniture assembly. The Doom shape provides a stable surface for tightening bolts or screws, ensuring a secure connection in wooden structures. This makes Doom Nuts a preferred choice in applications where aesthetics and stability are important, such as in the construction of furniture.

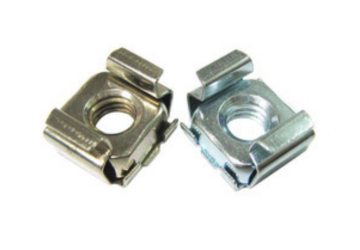

A cage nut is a specialized type of nut designed for use in rack-mounting equipment, particularly in server racks and network cabinets. It is commonly employed in scenarios where ease of installation and secure fastening are essential. The cage nut derives its name from the cage-like structure that surrounds the nut, providing additional stability and flexibility in mounting various components.
Cage nuts have a distinctive design featuring a square or rectangular metal cage that surrounds the nut. This cage typically includes spring-like tabs that allow the nut to be easily inserted and held securely within the square mounting holes of rack rails. The design is particularly well-suited for applications where quick and tool-free installation is desired.

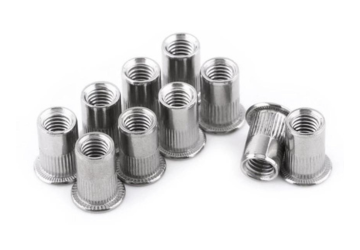

A rivet nut, also known as a blind rivet nut or threaded insert, is a specialized fastener designed for creating a threaded connection in materials where access to the opposite side is limited. This versatile and reliable fastening solution finds applications in various industries, providing a secure and durable method for creating threaded holes.The primary advantage of a rivet nut is its ability to be installed from only one side of the workpiece, making it ideal for situations where access to the opposite side is restricted or impossible. This blind installation capability is crucial in applications where creating a threaded hole from both sides is impractical.
